So we decided that we wanted to restore our beloved car during the winter to get it back onto the road for next summer. Then we accidentally ran into our brand new low mileage 1996 Roadmaster…
I now had to decide what to do with the "old" one.
I had already bought all the spare parts before we found the new one, and my dear friend Lucky was so kind to offer me his help and let me do all the work in his fantastic workshop…
The plan now is to sell the old one, but of course nobody wants a car with all these things that need to be fixed. And to be honest I do not want to sell any car in this condition.
My friend Lucky helped me for a full day to fix the Roadmaster.
First we started to replace the heater core, which is a huge pain in the a** to replace on these cars. Everything is hidden away and access to the heater hoses and the heater core itself is very limited and tight.
The heater core is hidden behind the glove box and the two hoses going to the heater core can only be un-tightened with a special hose clamp plier I had to buy. We then did not get the hose off the heater core… Several hours later, after lot of cursing, twisted and bloody fingers and a sore back, the heater core finally was out and the new one in. We pre-filled it with fresh coolant and it works perfectly again. No more fogged up windshield.
At the technical inspection the inspector noticed that the front brake rotors needed to be replaced, as they were slightly vibrating during hard stops. So I ordered new ones from AC Delco. We replaced those as well and cleaned up everything and re-greased the wheel bearings as well.
In the front wheel housings we cleaned up some corrosion and welded some fresh metal in.
So we managed to fix a lot of things during this long day at the shop.
Next time we will rebuild the rear brakes, replace the wheel cylinder and a brake hose. Then the car is back in perfectly working order again technical wise. We will then fix the corrosion the rear wheel well and I can then do the technical inspection again and it should pass it without a problem.
I will then offer the car for sale and drive it until a new owner takes over… If I would not need the money I would just keep this car, as it drives beautifully and I like it verrry much…
Unfortunately I did not take many pictures of the heater core removal process, but there are a few videos on youtube showing how to replace the heater core on the 96 Roadmaster.
Thanks again for a great day in your shop Lucky!
The old heater core is out - it had a small leak. Luckily the coolant did not drain into the car but escaped through the drain hose on the firewall.
My friend Lucky working in the wheel housing…
In August 2017 our Roadmaster was due for its annual technical inspection and unfortunately it did not pass… It needed brake work and there was some corrosion in the rear wheel wells. To make things even more fun it also decided to develop a leak in the heater core…
So we decided that we wanted to restore our beloved car this winter to get it back onto the road for next summer.
The other plan we had in mind was to find a really good one in the USA and import it to Austria. As we soon found out there are some extremely high taxes involved doing this.
A $ 5000,- car in the USA would cost at least $ 15.000,- until its on the road in Austria, and it is very complicated to have it registered… While we were looking, we also could not find any other Roadmaster for sale in Europe, as they are very rare over here and were never sold in Europe when new.
So we were ready for the restoration and I ordered all the necessary parts.
Shortly after everything arrived, we found an ad for a Roadmaster for sale here in Austria.
I immediately called and got in contact with the owner.
The car has only has 23k miles and was collector owned from day one. The first owner bought the car and never drove it during the 9 years he owned it, and he stored it in his climate controlled garage. In 2005 a new owner bought it and only drove it in summer on dry days and maintained it carefully. It also was always garaged.
Thats why the car is still in fantastic condition and looks and drives like a new car. It has zero rust and the woodgrain is in perfect condition. It's a "Limited" version with all available options ordered for it except the CD radio. Everything works as it should. It is in beautiful "Adriatic Blue Metallic"
After a couple of weeks of negotiating we bought the car almost on the same day in December as we bought our first 1996 Roadmaster 10 years ago. Coincidence has it that we also found this one in the same district in Vienna (Austria) as the last one. I know of 5 Roadmaster Wagons in existence in Austria - so they are pretty rare here.
The previous owner had a very "special" taste, and he glued a couple of decals, emblems and other things onto the exterior and interior of the Roadmaster which I could not live with, as they were absolutely not my style.
With the help of a heat gun and some WD 40, I luckily could remove everything without leaving a trace. I just warmed the decals and emblems with a heat gun on the lowest setting and applied some WD 40 and it came right off. The remaining residue could also be removed with the help of a paper towel and WD40.
Our new car will now get a full detail and I will change all fluids and it will then be ready for the road next spring. I also plan to install white wall tires instead of the blackwalls it came with. They are a "must have" for the Roadmaster IMHO.
Our old Roadmaster will be for sale, I will fix it up during the next few winter months and it will be available around May 2018…
10 years ago and now.
Strange items were glued onto the car…
… but everything came off easily.
While I can agree with what is written here: "Life is too short for small ugly cars" I wanted to remove the decal…
The previous owner had an eclectic taste…
Thanks for your help WD40
A few of the things I had to remove
In my garage now.
My Eldo comes with a radio with the CB option, so it should have the according tri-band antenna for the 78 Eldorado.
One of the previous owners had replaced the original antenna with a replacement antenna, which worked, but it had very poor CB reception and of course it does not look correctly.
What I have found out is that #22010515 was the original part number for the antenna.
This antenna was also used in the 1977 to 1982 Corvette and is extremely rare...
Replacement antennas had the part number #22010661 on the sticker with a date code below.
When these replacement antennas were no longer available, it seems they switched to a different antenna design as a replacement #12355706 (which I had in my car). This last design came with a special antenna splitter. I do not know if this splitter is essential or of it would also work with the original splitter which is still in my car.
It took me quite a while to find the correct antenna for my car as it seems to be made out of "unobtainium". I did search the net for days and somebody sent me an incorrect antenna which was for a Buick… Suddenly during my daily search, a correct, working antenna showed up on ebay, and I immediately hit the "Buy it now" button. It was not exactly cheap, but I was happy to have finally found it. When it arrived I cleaned it up properly.
I then found out that I would also need the correct antenna bezel on the fender. Various sellers sent me incorrect ones which they claimed would be the correct ones, and eventually I found a good used one from the seller of my antenna and a NOS one from a parts vendor (it has not arrived yet as once again USPS sent it to Australia instead of Austria - don't ask what this little bezel has cost… :-( )
I then also had to replace the thinner replacement antenna lead with an original one going from the antenna splitter behind the glove box to the antenna. I got this one from Arizona Vintage Parts.
I can say now that my car is 100% correct again. Unfortunately this project was an extremely expensive project and I will now try to sell all the not needed parts on ebay. They will fit Eldorados with non CB antennas and the other wrong CB antenna I got will be for Buicks, but could also be installed into the 78 Cadillacs, as the mast itself is exactly the same as on the original antenna and from the outside it would look completely stock. But purist as I am, I just needed the 100% correct antenna ;-)
The later style replacement CB antenna which I wanted to replace with an original one.
The later replacement style fender bezel looks completely different from the original one.
On the left you can see the official later style replacement CB antenna which looks very different. It does not have a load coil and no additional stub antenna. This is part #12355706. On the right you can see the original 1978 CB power antenna with the load coil on the mast and two antenna leads and the additional FM stub antenna. This antenna is nearly impossible to find…
Thats the CB - load coil, which can be adjusted. The plastic unfortunately got very brittle over the years on all antennas of this vintage.
This are the instructions which came with the car, if you ordered the very expensive CB option…
The antenna trim bezels for the 1978 Cadillacs. On the left the one for the regular antenna - on the right the one for the CB antenna with a larger diameter in the plastic part. The chrome ring is exactly the same for both. These two are used ones I found.
I cant believe that I was lucky enough to find this super rare antenna bezel as a NOS part - still wrapped in its original plastic bag. Not exactly a bargain, but its 100% perfect.
The new, correct antenna installed into the car.
This is the incorrect CB antenna I got. It could be installed into a 78 Eldorado without any problem and would look 100% correct from the outside. It works perfectly smooth, and the chrome mast is in excellent condition. The load coil and the FM stub antenna are all there. The previous owner of this antenna removed it from a 78 Eldorado, but it would normally be correct for Buicks. If you are not such a purist as I am, you can buy it from me for what I paid for it. ($250 + shipping) It comes with all the necessary hardware to install it.
The car is all original - including original paint and is in very good mechanical condition as well. It has most of the available options that were offered in 1966.
Its very rare to find a Coupe deVille without a vinyl top. It also has the ultra rare and very expensive bucket leather seats with center console. The car comes from a Cadillac Collector and was pampered its entire life. The mileage is fully documented and accurate. I´m a big fan of the “Antique gold metallic" paint and the black leather interior is absolutely stunning.
Can´t wait to see the car in real life in about 10 - 12 weeks after it has crossed the Atlantic.
More details and pictures will follow once the car is in my garage.
UPDATE: !!SOLD!! - IT SOLD VERY QUICKLY!
I´ll leave the description below just to let you know what you have missed ;-) Congratulations to the new owner!

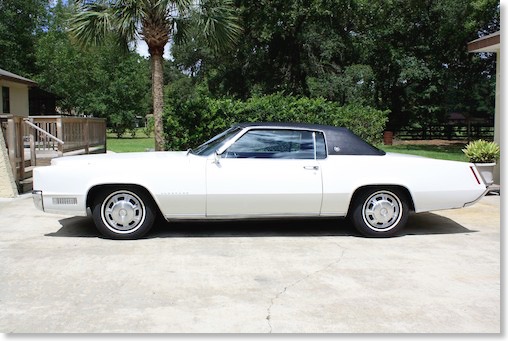

This is your chance to own one of the lowest mileage 1967 Cadillac Eldorados on the planet!
Up for sale is a breathtaking 1967 Cadillac Eldorado with less than 9.000 miles on the clock. It's an all original car and probably one of the best in existence.
The car is located in Florida and was brought back to life during the last year. Its for sale by the second owner of the car who owns it for 25 years now and wants to let it go due to his age and as he has nobody to pass this car on.
The original owner died when the car had 7800 miles on it. The car was stored in a heated garage until a broker purchased it. It was then purchased from him by the current owner. It was only driven to local shows. The car is as straight as an arrow. The only repaints on the car are the air cleaner and the valve covers, every thing else is original. This car has drum brakes all around, which can be a plus since rotors are not available.
This car has not seen rain in the last 25 years. Since there is no rust on the drums, I wonder if this car has ever seen any rain.
A list all the things done to the car:
- Radiator boiled out and pressure checked.
- Carb rebuild.
- Brakes rebuilt.
- The vacuum switch for the air conditioner was replaced,
- It has the original Freon in it and comes with 1 and a half cans of the original Freon that goes with the car.
- The water pump has been replaced.
- the vacuum motors that operate the headlight doors were replaced. All the vacuum lines for this have been replaced as well.
- The vacuum lines for the leveling system have been replaced and the system worked fine except that one shock leaked and both rear shocks had to be replaced. The replacement shocks have a spring with them and the car sits perfectly and handles great. The old shocks will go with the car in case they can be rebuilt. Vacuum has been blocked from the pump so it does not run all the time.
- The complete muffler system has been replaced with original parts.
- The original tires have been replaced except the spare witch has never been removed from the trunk.
- The interior is in mint condition.
- The chrome and stainless are really nice, except for one spot on the front bumper, which I think a hot lead hit the bumper years ago. You can see it if you look at the picture of the passenger side bumper pic. Its not that bad but its there. To fix it would require a re-chrome.
As this is a very special quality car it won't go cheap of course! This is one of the best 1967 Cadillac Eldorados in the world.
If you are seriously interested - let me know and I can put you in contact with the seller! If I had the money to purchase another car, I would definitely buy it for myself!
Car is located in Florida!

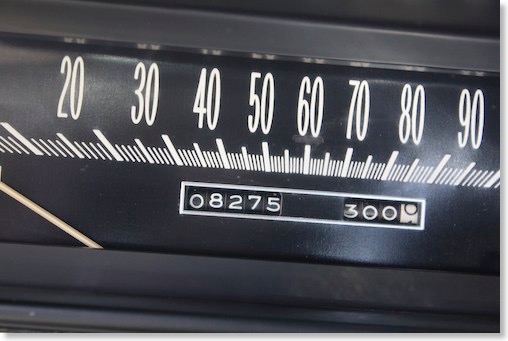

Yes, thats the original mileage!!
“I want to sell my 1958 Eldorado Seville. The car is 100% complete and in very fine condition. Everything is working and it drives like a new car. The interior is 100% original and in super condition.”
If you are interested please contact Per Rubien in Denmark directly! Phone: +45 98134480 or mail:
He is asking around € 35.000.- - which is a very reasonable price for a car like this!
