THE 1967 ELDORADO RESTORATION - WHAT WE HAVE LEARNED SO FAR...

24 | 02 | 18 | 13:47 | Filed in: 1967 Cadillac Eldorado | Restoration

LONG POST AHEAD!

Whenever you restore a car you can learn a lot about it. The ongoing restoration of my 67 Eldorado is taking a little break now, and here is a summary of things we have learned so far during the restoration process:

There seems to be a design and/or a problem at the front windshield which causes rotten floors and rust in the A- pilar:
Although my car is a low mileage car (28k miles) with no other real rust issues, the front floor of my car had to be replaced as we found out when the carpet was removed. I have heard some similar stories from fellow Eldorado owners who had the same problem with their cars. Some of them owned very low mileage texas cars and had rotten floors and/or rust in the A-pillar. The water seems to enter at the A-pillar and often causes rust through holes there. It can then seep into the car, where it ends on the front floor, from where it cant evaporate due to the rubber insulation used underneath the carpet. When the windshield on my car was re-installed, we made sure that it seals perfectly and we used some modern material to make sure there wont be any future issues. The front floor on my car had to be replaced as you can see on the pictures of my restoration gallery.

edge
The cut out front floor.

New speakers, new alternator, new trunk lining material and a new windlace for the Mark III.

01 | 05 | 11 | 18:08 | Filed in: Restoration | 1971 Lincoln Continental Mark III

Today I got some new pictures from Brian, the previous owner of my Mark III, who is doing the final refinements before the car will be picked up next week.
He got a new set of replacement speakers for the car The right one had a tear in the cone. The left wasn't that bad, but the mounting part was starting to crumble. Brian removed the wiring harness from the old speakers and soldered them onto the new, so they would plug in correctly. He is a professional philharmonic musician and he said that they sound much better, no distortion and better frequency response. Brian got the speakers from the same source where I got the ones for my Cadillacs before - from Greg Thompson from Turnswitch.
Skip, the upholstery guy, installed the new trunk carpet - and as you can see on the pictures below - it turned out beautifully. He also installed a new windlace on the drivers side - which turned out perfectly as well. As you can imagine I´m really looking forward to finally get the car ;-)
When Brian thought that everything was fixed the alternator went out - so he replaced it as well and even installed a new battery! AWESOME! The speed control was also fixed and works perfectly too!

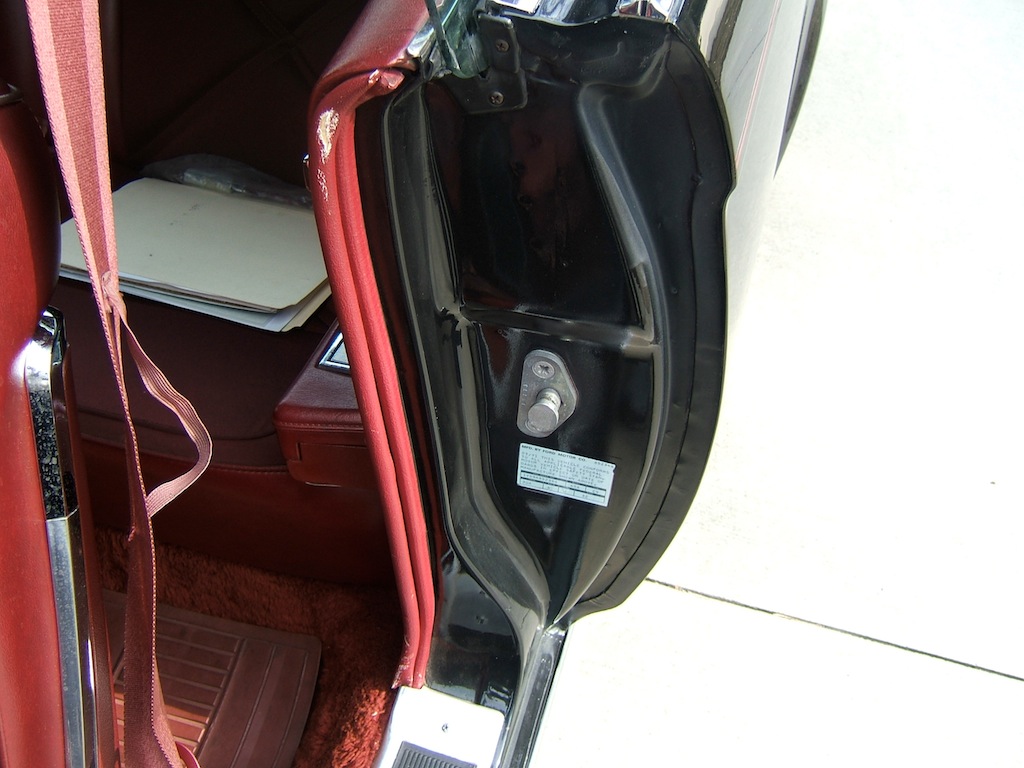

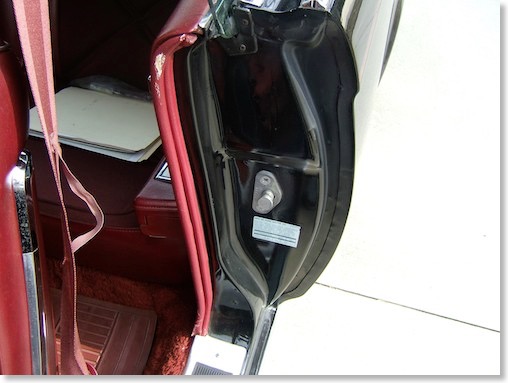

The windlace before

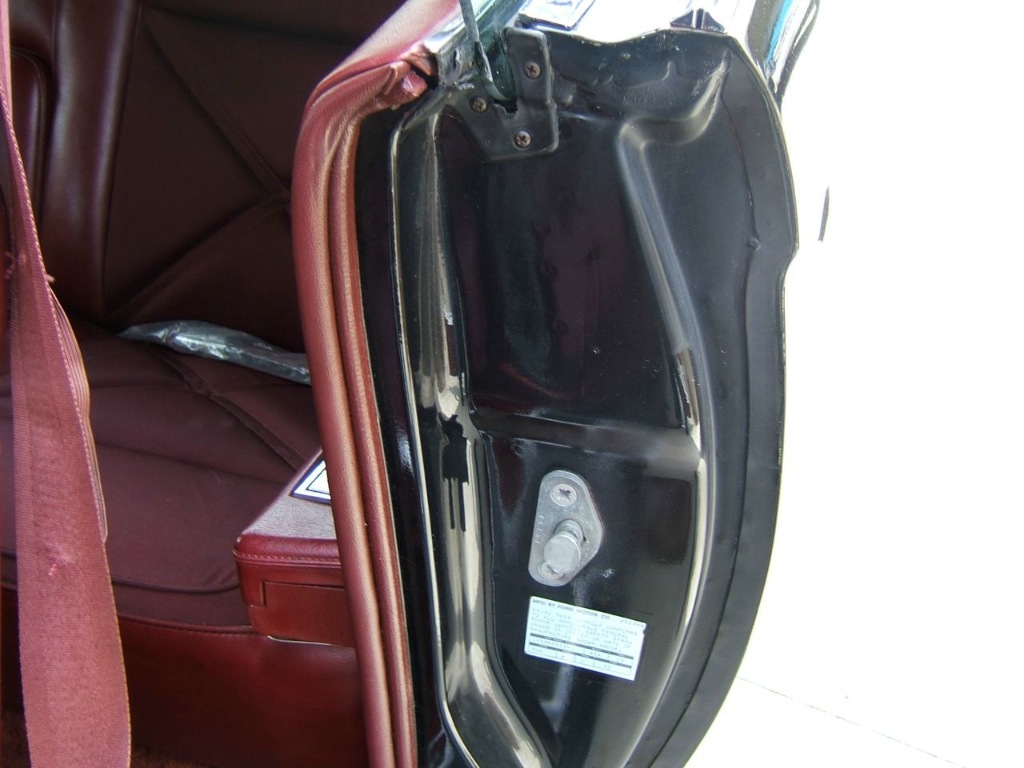

and after it was replaced...

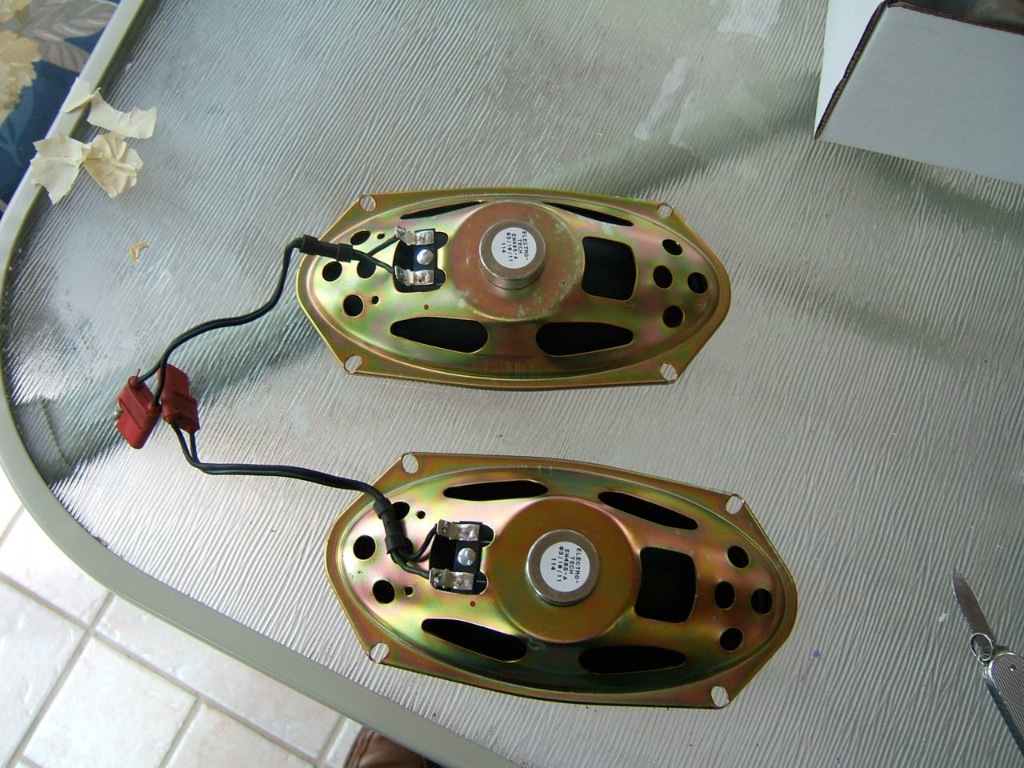

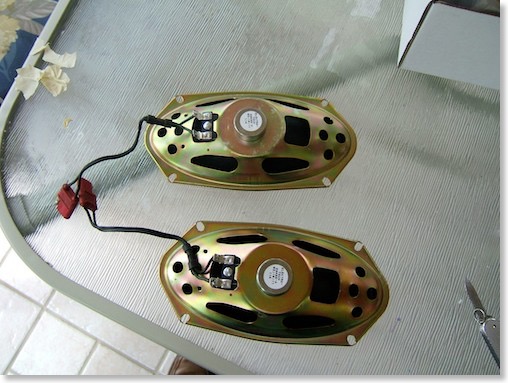

The old connectors were soldered to the new replacement speakers

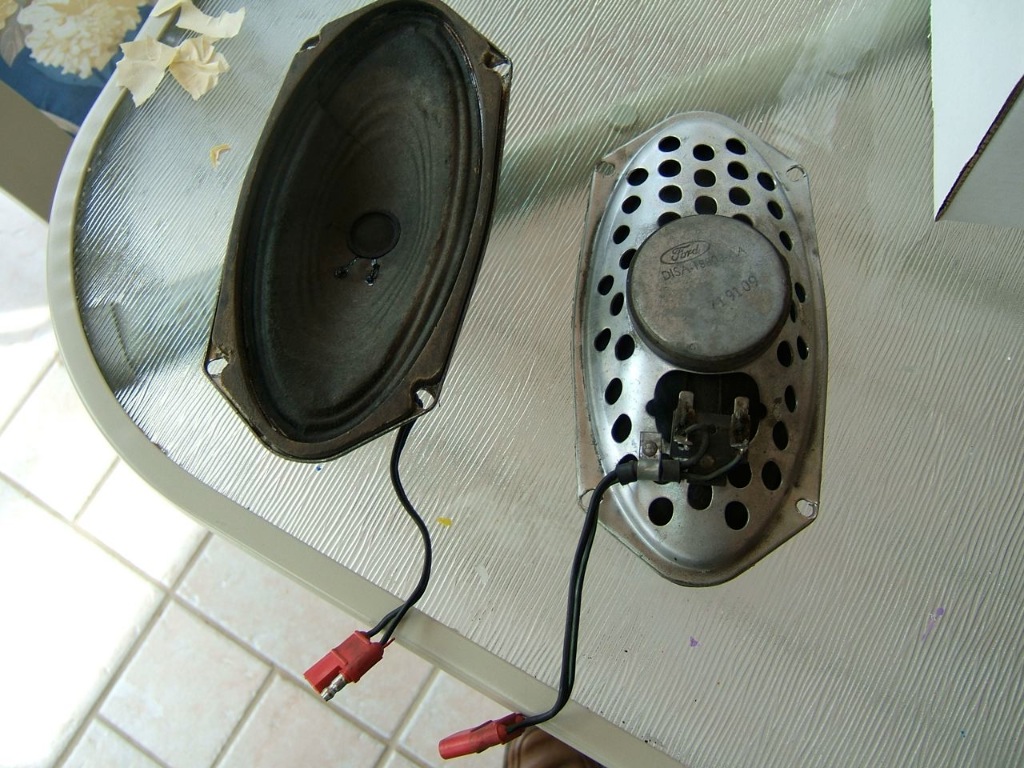

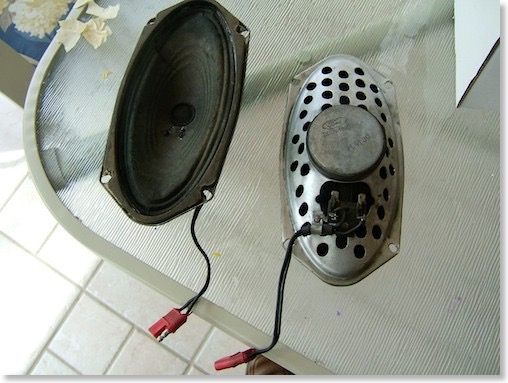

The old speakers

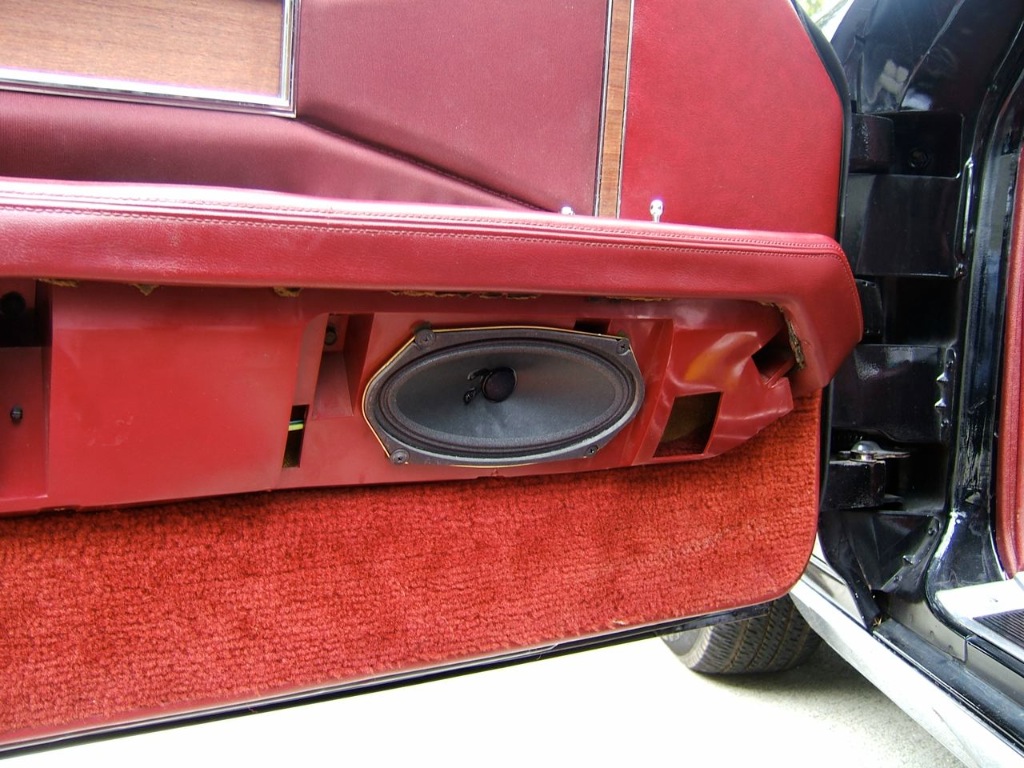

The new speaker installed on the drivers side...

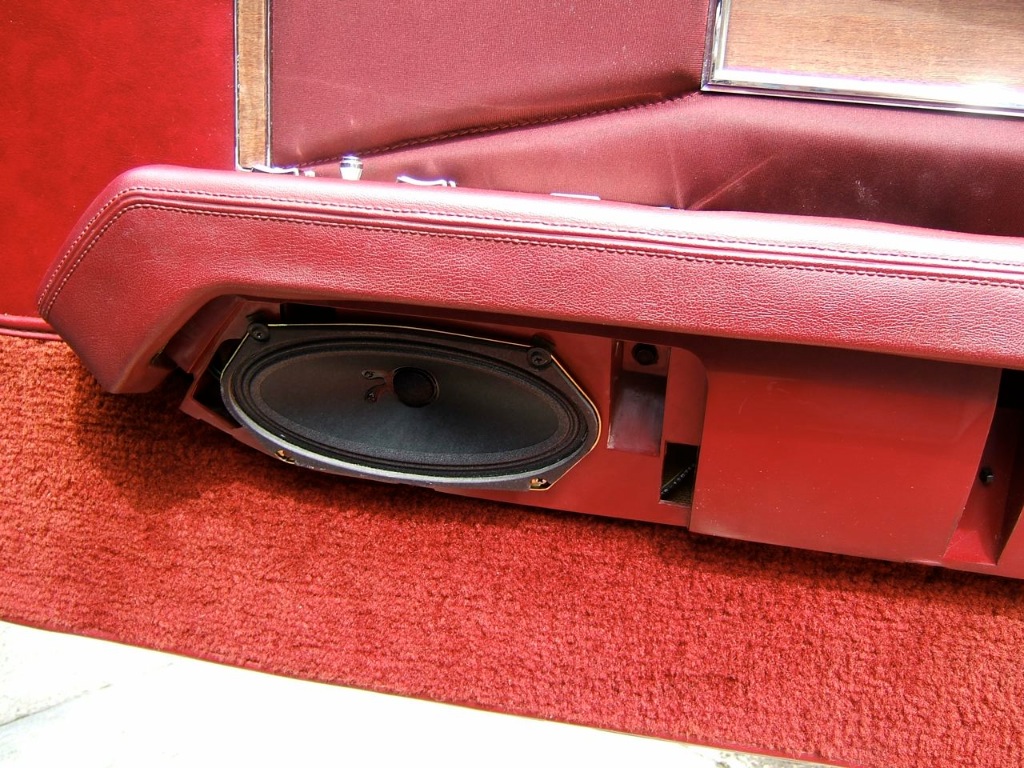

...and the passenger side

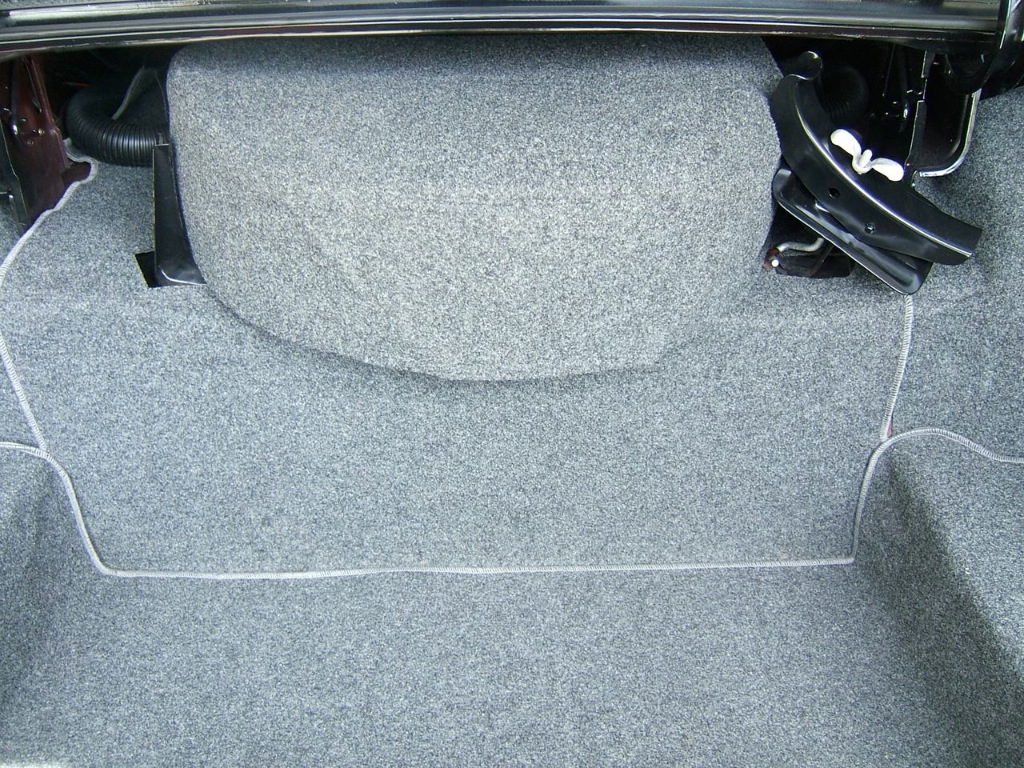

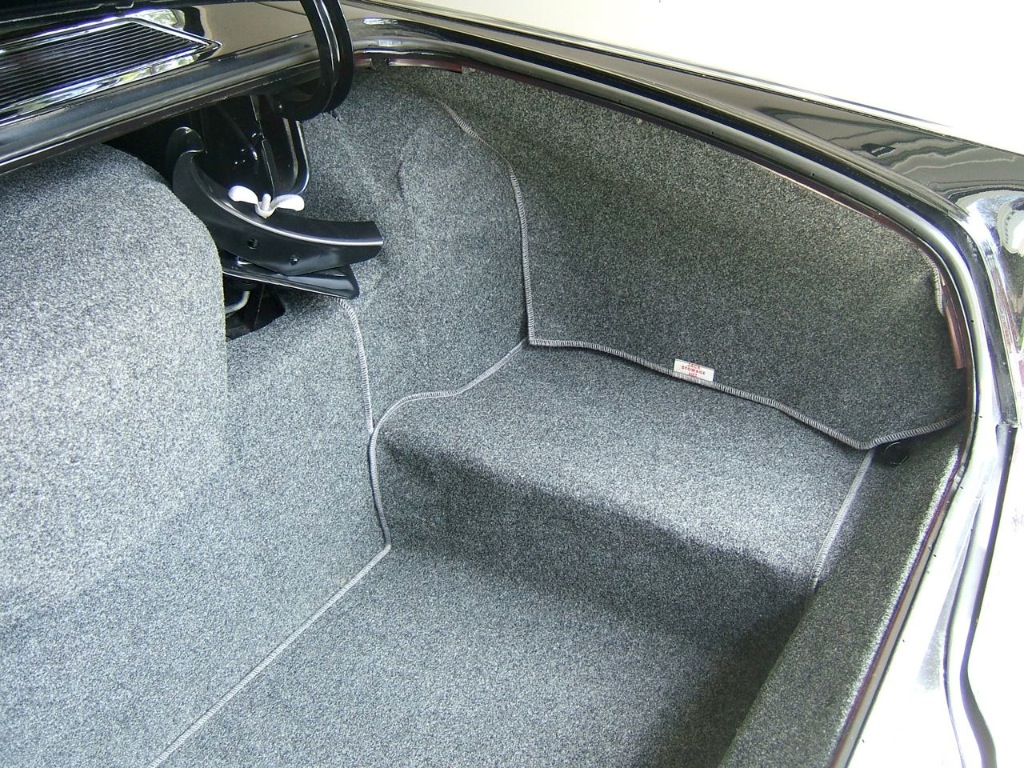

The new trunk carpet - perfectly installed by Skip

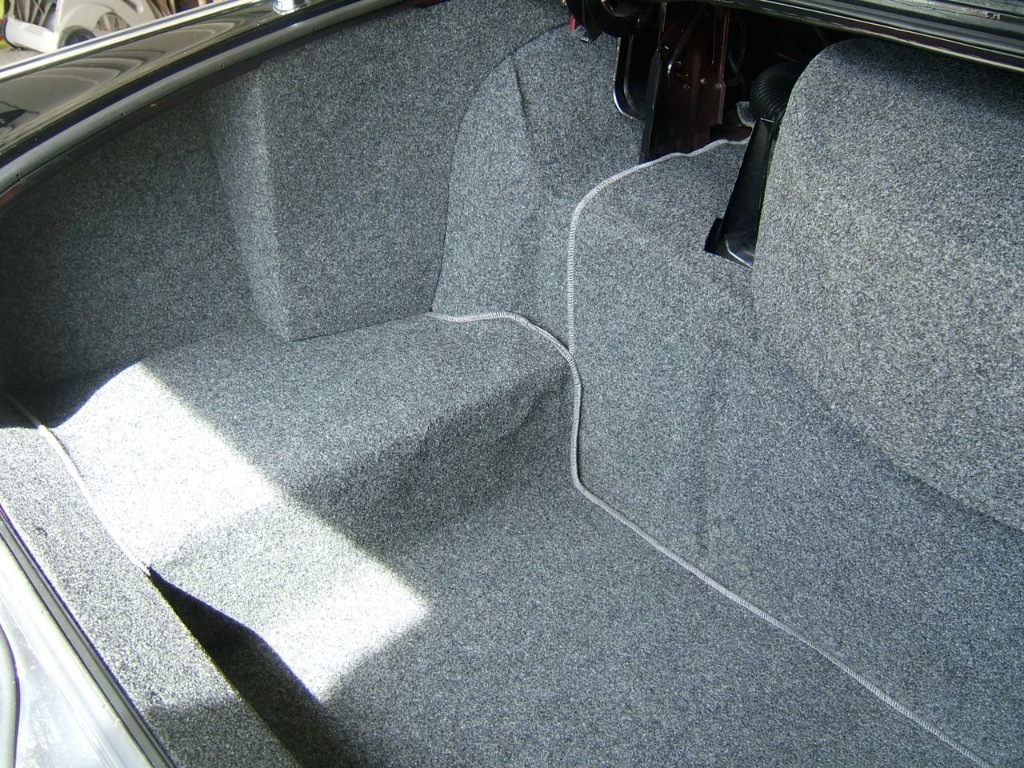

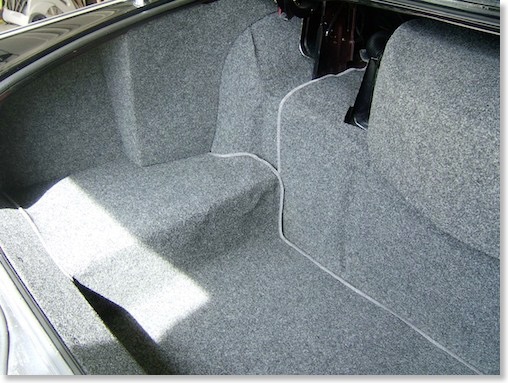

The new trunk carpet - perfectly installed by Skip

The new trunk carpet - perfectly installed by Skip
